Description

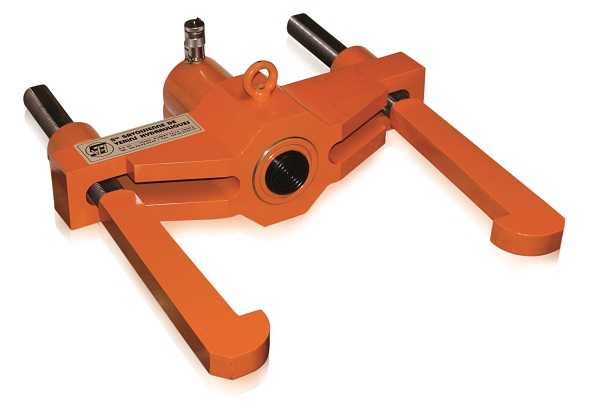

Hydraulic puller description

Hydraulic pullers are essentially aimed at pulling or mounting pulleys, bearings, rings, etc. In the EPI version, the built-in pump on the cylinder makes it possible to obtain equipment that is autonomous, compact and easy to use. In the EPS version, they can be supplied by any type of 700 bar hydraulic pump. Adaptable on request, in terms of size, power, stroke or distribution, the standard range can serve as a basis for the definition of your requirement.

Specifications of the hydraulic puller

• Two-jaw hydraulic puller 10 to 50T

• Single-acting cylinder with spring return

• Stroke 100 to 220mm according to power

• Supply via:
– Built-in pump for EPI
– With hand or central pump for EPS

• Anti-seizing, corrosion-proof treatment of cylinder
