Automatic dual-speed electric system – 1.1 kW – 1000 bar (E.153)


Description

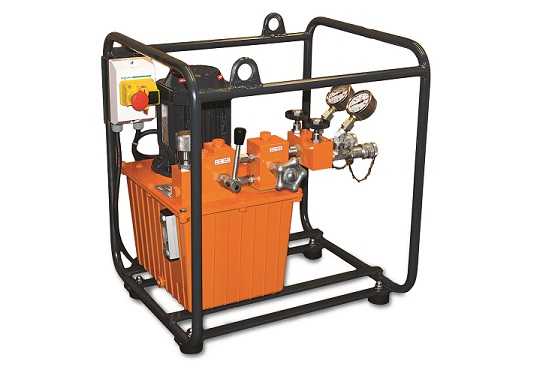

Specifications of the E.153 hydraulic system with electric motor

• 1.1 kW three-phase 230/380 V – 50Hz electric motor

• Pressure of 700 bar in continuous operation

• Automatic dual-flow rate pumps:
– 5.4L/min in approach mode up to 100 bar
– 0.8L/min in operation up to 700 bar

• Effective tank capacity 13, 22 and 50 litres

• Adjustable external pressure limiter

• Pressure gauge

• 3/8 NPT outlet oil connector
