Built-in pump – load cylinders (MPI.A)


Description

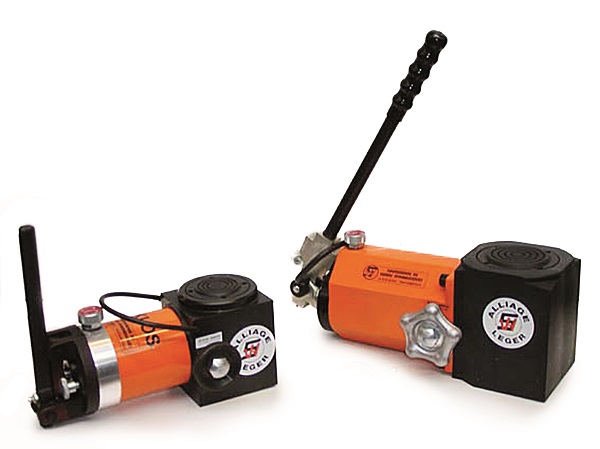

Description of the load cylinder with built-in pump MPI.A
Sturdy, reliable, easy-to-handle, autonomous and highly compact, MOKLOS MPI.A “Very lowpumps are ideal for mobile uses, where the available height is restricted. Their hydraulic pump with two automatic flow rates enables speedy contact with the load and a reasonable force on the lever in the pressure rise phase. The parts are adjusted to the nearest micron and tightness is guaranteed with an oil film, with no seal, enhancing durability further. In the S version, the threaded piston is equipped with a safety nut enabling mechanical securing of the load in position.

Specifications of the MPI.A low cylinder with built-in pump

• Thrust 25 to 50 tonnes

• Stroke: 60 mm (25 T) and 70 mm (50 T)

• Load return

• Smooth or threaded piston with safety nut (S version)

• Guide and stop ring

• Flat detachable piston head

• Built-in pump with automatic dual flow rate with integrated pressure limiter (except on MPI.A.25.60)

• Pumping lever with 360° range

• Pressure gauge connector
