2-speed – Single-acting hand pump (BHI)

Category:

Description

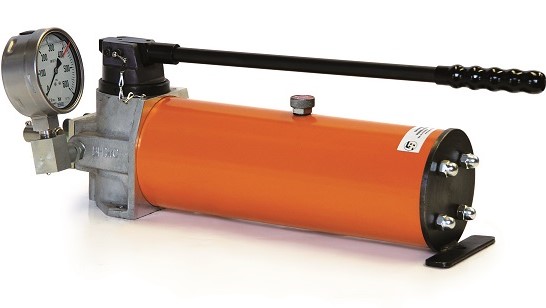

Description of the BHI hand pump, single-acting
Designed for the supply of single-acting cylinders, the hand pumps in the BHI range are equipped with automatic dual-flow rate injection pumps enabling instantaneous transition from the fast approach speed to the working speed. Each pump has a braking valve for controlled load descent, an adjustable internal pressure limiter, and a connector for a pressure gauge.

Specifications of the 2 speed single-acting hand pump

• Working pressure 700 to 1500 bar

• Effective oil tank capacity 1 to 60 litres

• Single-piece light alloy body

• Automatic dual-flow rate pump with internal pressure limiter

• Braking valve for controlling load descent

• Detachable pumping lever, lockable in low position

• Lever high position return spring

• Pressure gauge connector

• Stabilisation lug
