Description

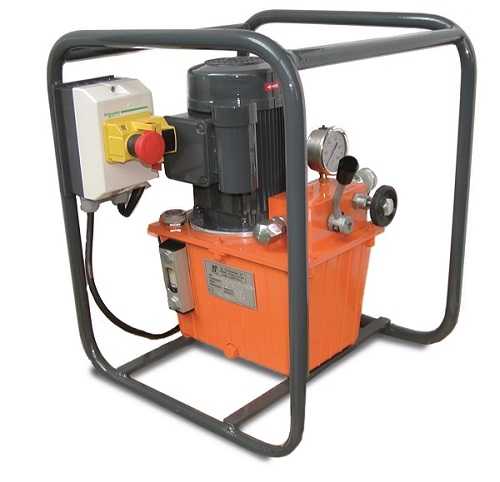

Specifications of the EB.037 hydraulic system with electric motor

• 0.37 kW three-phase 230/380 V – 50Hz electric motor

• Pressure of 700 bar in continuous operation

• Automatic dual-flow rate pumps:
– 3 L /min in approach mode up to 100 bar
– 0.25 L /min in operation up to 700 bar

• Effective oil tank capacity 6 litres

• Adjustable external pressure limiter

• Pressure gauge diameter 63

• 3/8 NPT outlet oil connector

• Tubular protective chassis
