Description

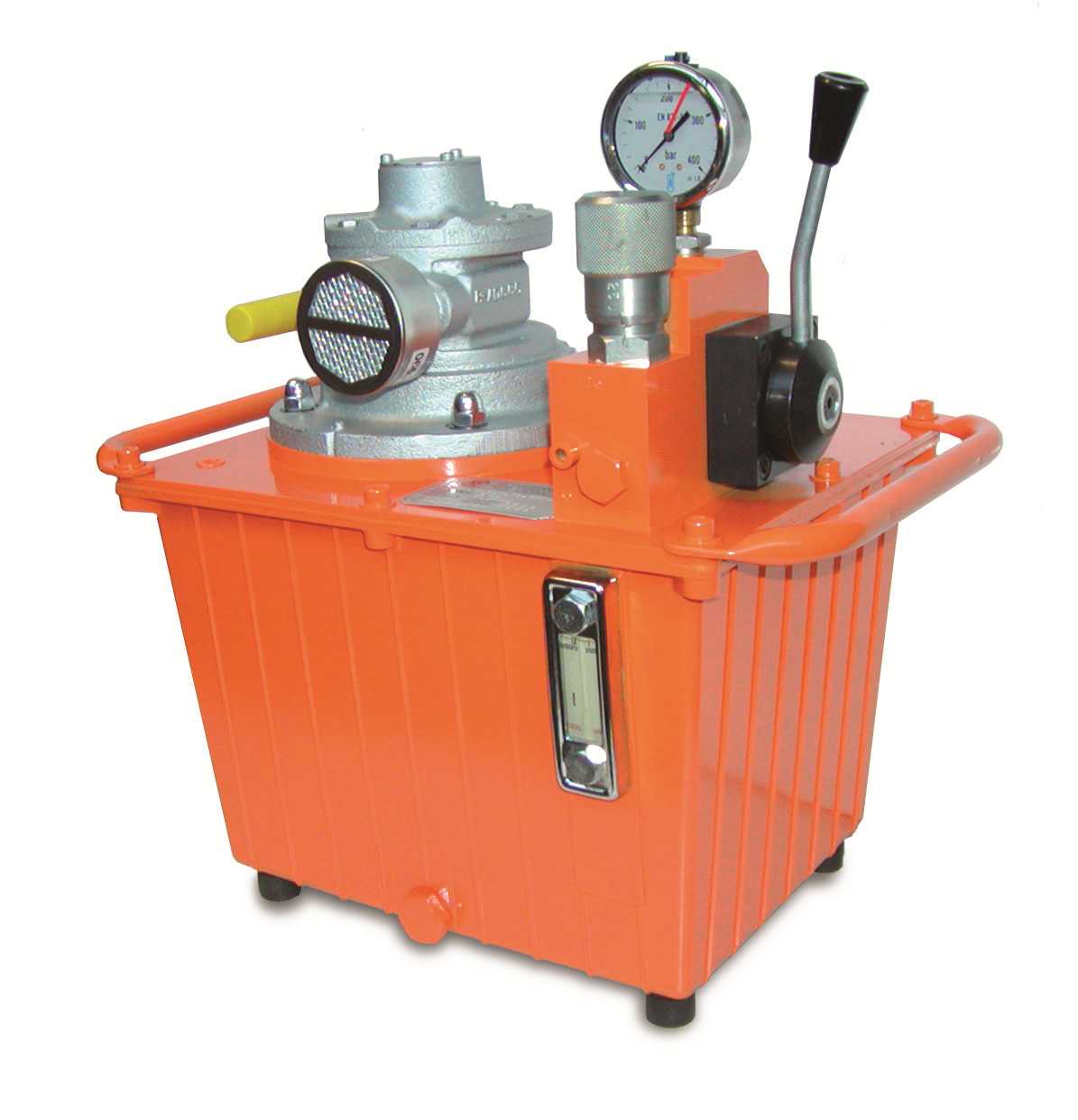

Description of the PN.153 hydraulic system

Compact, lightweight and easy-to-handle, PN.153 hydraulic systems are powered by a pneumatic motor. They are particularly well-suited to environments in which electric motors and combustion engines are not authorised.

Specifications of the pneumatic motor hydraulic system PN.153

• 3 kW pneumatic motor

• Compressed air supply:
– Air flow rate at max power 2120 l/min
– Air pressure 7 bar

• Hydraulic pressure 700 bar in continuous operation

• Automatic dual-flow rate pumps:
– 5 L/min in approach mode up to 100 bar
– 0.45 L/min in operation up to 700 bar

• Effective tank capacity 13, 22, 50 litres

• Adjustable external pressure limiter

• Pressure gauge

• 3/8 NPT outlet oil connector
