2-speed – Differential double-acting pump (BHC)

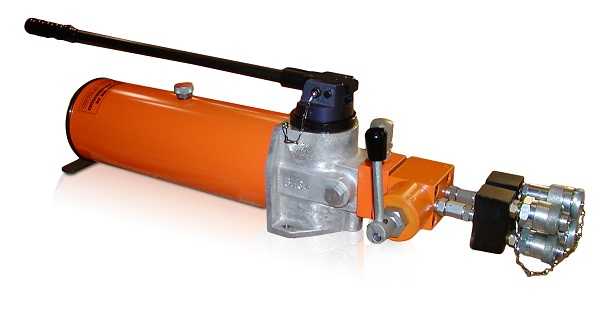

Description of the double-acting BHC pump

Designed for the supply of EGES KRATO type differential double-acting cylinders with separate pump (EKPS), the hand pumps in the BHC range are equipped with automatic dual-flow rate injection pumps enabling instantaneous transition from the fast approach speed to the working speed. Each pump has a two-way manual inverter for push or pull mode, an adjustable internal pressure limiter, and a connector for a pressure gauge.

Specifications of the 2-speed differential double-acting pump

• Working pressure 700 to 1000 bar

• Effective oil tank capacity 1 to 60 litres

• Single-piece light alloy body

• Automatic dual-flow rate pump with internal pressure limiter

• Two-way manual inverter

• Detachable pumping lever, lockable in low position

• Lever high position return spring

• Pressure gauge connector

• Stabilisation lug
