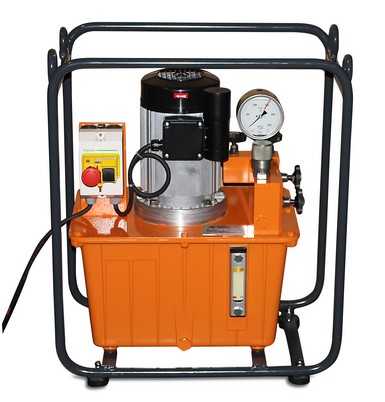

Automatic dual-speed electric system – 1.1 kW – 2000 bar (EHP.15)


Description

Specifications of the dual-speed electric motor system

• 1.1 kW three-phase 230/380 V – 50Hz electric motor

• Pressure of 2000 bar in continuous operation

• Automatic dual-flow rate pumps:
– 5.4L/min in approach mode up to 100 bar
– 0.4L/min in operation up to 700 bar

• Effective tank capacity 20 litres

• Factory-calibrated safety pressure limiter

• Easy-adjustment, fine interval pressure limiter

• Pressure gauge

• ½ BSP outlet oil connector (sealing on cone)
