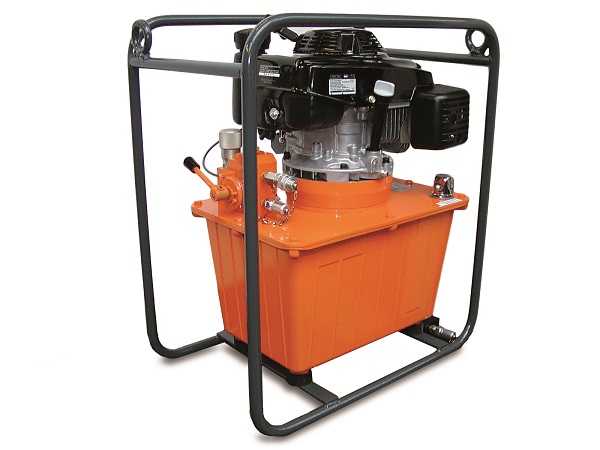

Automatic dual-speed combustion engine system – 4.1 kW – 1000 bar (T.153)


Description of the T.153 hydraulic system:

Compact and autonomous, T.153 hydraulic systems are powered by a petrol-fuelled combustion engine. As such, they are perfect for mobile applications, on worksites or in the field. Acceleration synchronised with the system control makes it possible to automatically save fuel and reduce noise pollution. The distribution can be adapted on request.


Specifications of the combustion engine hydraulic system

• 4.1 kW petrol-fuelled 4-stroke combustion engine at 3600 rpm

• Pressure 700 or 1000 bar in continuous operation

• Automatic dual-flow rate pumps:
– 6 L/min in approach mode up to 100 bar
– 1.1 L/min in operation up to 700 bar

• Effective tank capacity 13, 22, 50 litres

• Adjustable external pressure limiter

• Pressure gauge

• 3/8 NPT power supply
