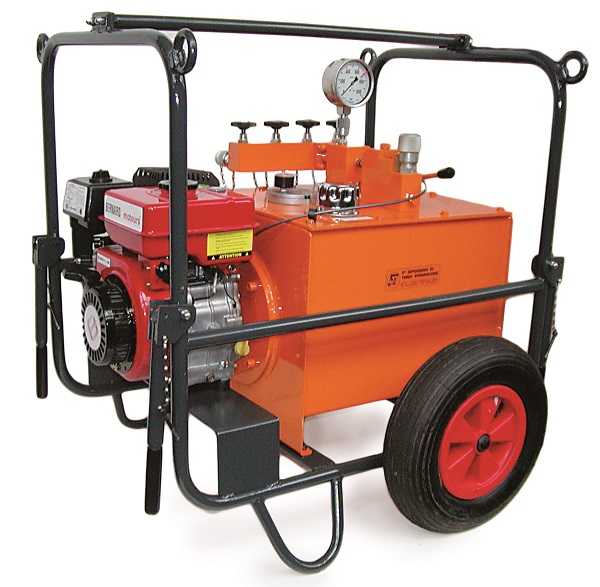

Automatic dual-speed combustion engine system – 5.1 kW – 700 bar (THB.51)


Description of the THB.51 hydraulic system:

Easy-to-handle and high-powered, THB.51 hydraulic systems are powered by a petrol-fuelled combustion engine. As such, they are perfect for mobile applications, on worksites or in the field, for the supply of high-capacity cylinders or tools requiring a substantial flow rate. Acceleration synchronised with the system control makes it possible to automatically save fuel and reduce noise pollution. The distribution can be adapted on request.


Specifications of the combustion engine system THB.51

• 5.1 kW petrol-fuelled 4-stroke combustion engine at 1800 rpm

• Pressure 700 bar in continuous operation

• Automatic dual-flow rate pumps:
– 9 L/min in approach mode up to 100 bar
– 2.5 L/min in operation up to 700 bar

• Effective tank capacity 22, 30, 50 litres

• Adjustable external pressure limiter

• Synchronised acceleration

• “Wheelbarrow” type tubular handling chassis on wheels

• Pressure gauge

• 3/8 NPT power supply
